Wieland 24VDC-1W-16A Screw Connection Relay Module
Wieland 24VDC-1W-16A Screw Connection Relay Module
SKU:COU-d073b8
High-quality coupling relay module with 24V DC nominal voltage, 1 change-over contact. IP20 protection. RoHS & REACH-SVHC compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland 24VDC-1W-16A Screw Connection Relay Module
$34.99
Quantity: 1
Claim Your Seller Account
Wieland 24VDC-1W-16A Screw Connection Relay Module
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

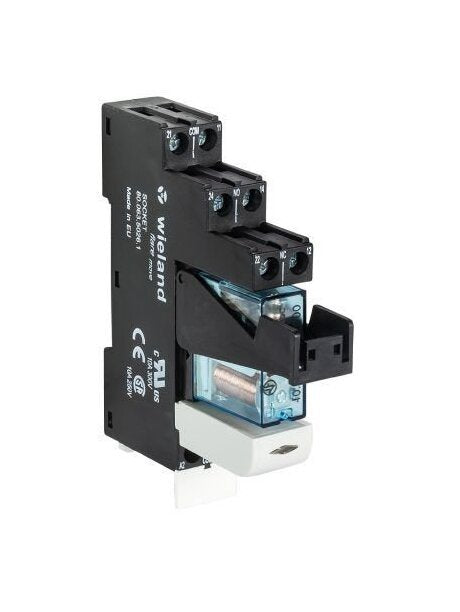

The Wieland RELAY MODULE FLARE MOVE 24VDC-1W-16A is a high-quality coupling relay module designed for industrial applications. With a screw connection, it provides reliable connectivity for various systems. This module features a 24V DC nominal operating voltage, 1 change-over contact rated at 250V AC / 16A, and IP20 protection. It is polarity-free, monostable, and includes a socket for easy installation. Compliant with RoHS and REACH-SVHC standards, this relay module ensures both performance and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

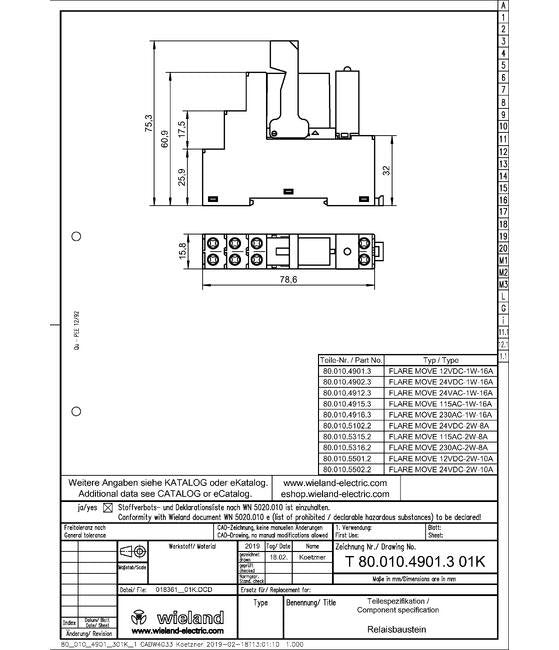

Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 24VDC-1W-16A
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-8(b)
Technical Data Direct Current Dc Lower Nominal Voltage
17.52 V
Technical Data Direct Current Dc Upper Nominal Voltage
42 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
