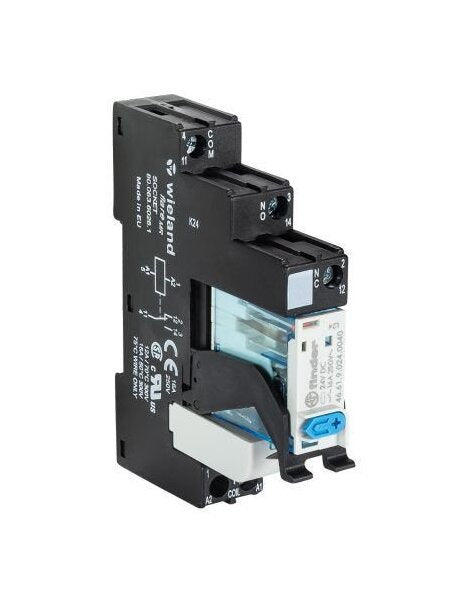

Wieland 24VDC 1W 16A Solid State Relay Module
Wieland 24VDC 1W 16A Solid State Relay Module
SKU:COU-d0dd8b
High-performance Wieland 24VDC 1W 16A Solid State Relay Module with screw connection, polarized drive, and silver nickel contacts for reliable power switching.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland 24VDC 1W 16A Solid State Relay Module
$39.99
Quantity: 1
Claim Your Seller Account
Wieland 24VDC 1W 16A Solid State Relay Module
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MR 24VDC-1W-16A-S is a high-quality coupling relay designed for reliable performance. Featuring a screw connection, polarized drive, and silver nickel contacts, this solid state relay ensures efficient power switching. With IP20 protection and RoHS conformity, it meets stringent industry standards for safety and environmental compliance. Ideal for industrial applications requiring mono stable function and direct current excitation.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 30 Classification
EC001437
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

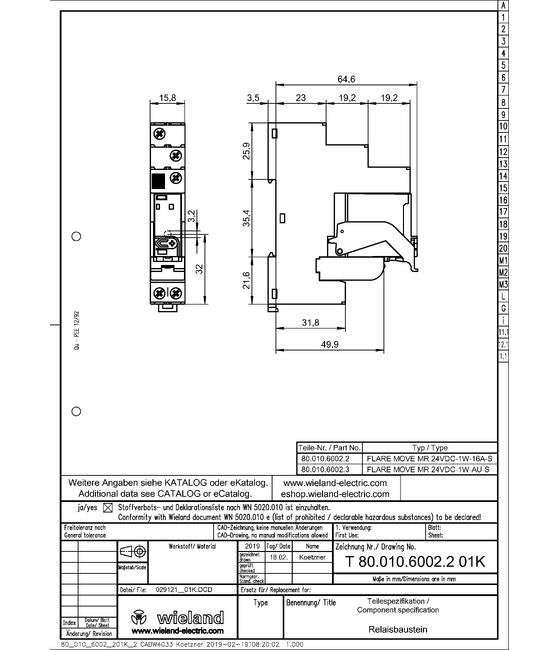

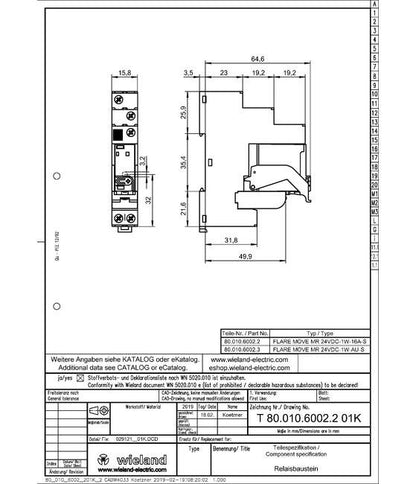

Dimensions Depth
68.1 mm
Dimensions Height
82.9 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MR 24VDC-1W-16A-S
General Number Of Change Over Contacts
1
General Polarization Drive
Polarized
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Switching Contact Data Contact Material
Silver Nickel (AgNi)
Technical Data Direct Current Dc Lower Nominal Voltage
17.52 V
Technical Data Direct Current Dc Upper Nominal Voltage
26.4 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
