Wieland 24VDC-1W-6A Screw Connection Relay Module

Name: Wieland 24VDC-1W-6A Screw Connection Relay Module
Brand: Wieland Electric Inc.
SKU: COU-8f1990
Price: 29.99 USD
Availability: OutOfStock

SKU:COU-8f1990

Compact Wieland 24VDC-1W-6A Relay Module for industrial use. Nominal 24V DC, 1 change-over contact, IP20 rated, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

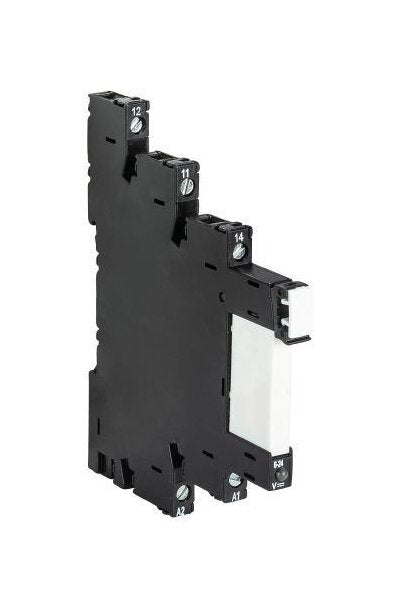

The Wieland RELAY MODULE FLARE MOVE 24VDC-1W-6A is a compact and efficient coupling relay designed for industrial applications. With a width of 6.2mm, this relay module offers a reliable plugable connection. It operates at a nominal voltage of 24V DC and features 1 change-over contact rated for 250V AC/6A. The relay module is IP20 rated, RoHS and REACH-SVHC compliant, ensuring safety and environmental standards are met.

Product Specifications

Classification Eclass 81 Classification

EC001437

Classification Etim 50 Classification

EC001437

Classification Etim 60 Classification

EC001437

Classification Etim 70 Classification

EC001437

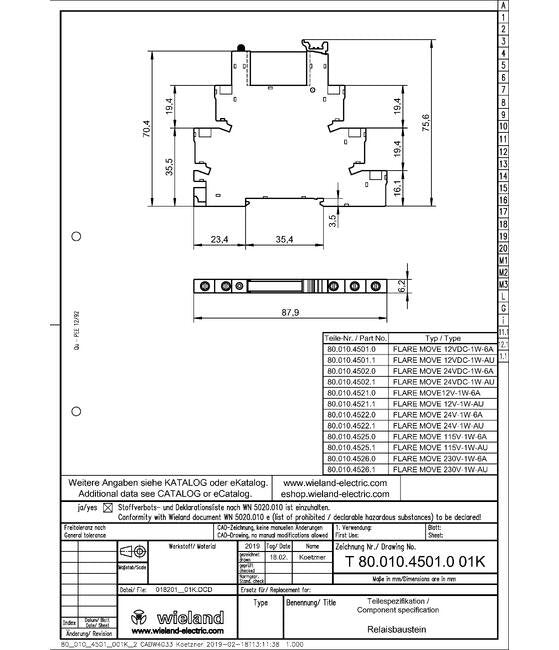

Dimensions Depth

76 mm

Dimensions Height

88 mm

Dimensions Width

6.2 mm

General Brands

Wieland

General Complete With Socket

Yes

General Connection Type

Screw Connection

General Degree Of Protection Ip

IP20

General Detachable Clamps

General Forced Guided Contacts

General Function Drive

Mono Stable

General Model

RELAY MODULE FLARE MOVE 24VDC-1W-6A

General Number Of Change Over Contacts

General Polarization Drive

Polarity Free

Product Compliance Reach Svhc Conformity Status

Compliant

Product Compliance Rohs Conformity Status

Compliant

Technical Data Direct Current Dc Lower Nominal Voltage

18 V

Technical Data Direct Current Dc Upper Nominal Voltage

28.8 V

Technical Data Minimum Direct Current Dc Nominal Voltage

24 V

Technical Data Type Of Excitation

Direct Current (DC)
