Wieland 24VDC-2W-10A Coupling Relay Module

Name: Wieland 24VDC-2W-10A Coupling Relay Module
Brand: Wieland Electric Inc.
SKU: COU-25b354
Price: 49.99 USD
Availability: OutOfStock

SKU:COU-25b354

Enhance industrial operations with the Wieland 24VDC-2W-10A Coupling Relay Module. Secure connections, high functionality, and easy installation make it a top choice.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 24VDC-2W-10A Coupling Relay Module is a high-performance component designed for industrial applications. With a screw connection type and IP20 degree of protection, this relay module ensures secure and reliable electrical connections. Featuring 2 change-over contacts, polarity-free polarization drive, and monostable function drive, it offers enhanced functionality. The inclusion of a socket adds convenience to the installation process, making it a top choice for demanding environments. This relay module meets ECLASS 8.1 and ETIM 7.0 classifications, ensuring compliance with industry standards.

Product Specifications

Classification Eclass 81 Classification

27371601

Classification Etim 40 Classification

EC001437

Classification Etim 50 Classification

EC001437

Classification Etim 60 Classification

EC001437

Classification Etim 70 Classification

EC001437

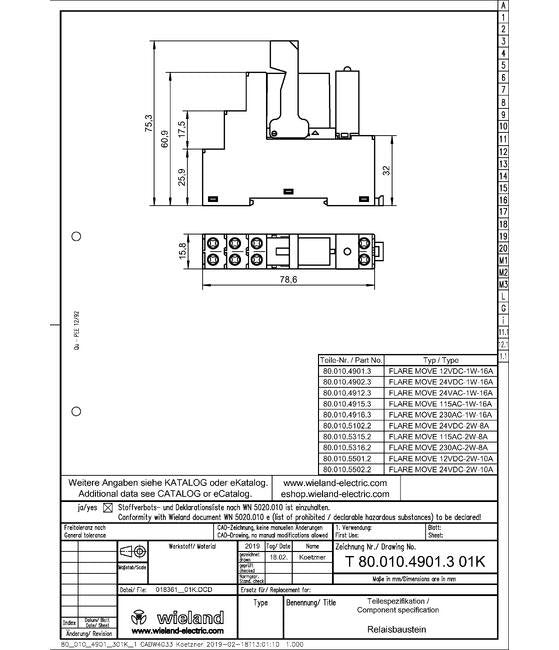

Dimensions Depth

76 mm

Dimensions Height

78.6 mm

Dimensions Width

15.8 mm

General Brands

Wieland

General Complete With Socket

Yes

General Connection Type

Screw Connection

General Degree Of Protection Ip

IP20

General Detachable Clamps

General Forced Guided Contacts

General Function Drive

Mono Stable

General Model

RELAY MODULE FLARE MOVE 24VDC-2W-10A

General Number Of Change Over Contacts

General Polarization Drive

Polarity Free

Wieland 24VDC-2W-10A Coupling Relay Module
