Wieland 24VDC/48VDC-0.5A Solid State Relay Module
Wieland 24VDC/48VDC-0.5A Solid State Relay Module
SKU:COU-97ee1a
Reliable Wieland 24VDC/48VDC-0.5A Solid State Relay Module for industrial applications. RoHS & REACH-SVHC compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 24VDC/48VDC-0.5A Solid State Relay Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 24VDC/48VDC-0.5A Solid State Relay Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 24VDC/48VDC-0.5A Solid State Relay Module is a reliable coupling relay designed for industrial applications. With a slim 6.2mm width, this module features a spring clamp terminal for secure connections. It operates with a 24V DC input and outputs between 4.4V to 53V DC at 0.5A, providing efficient power control. This module is RoHS and REACH-SVHC compliant, ensuring environmental safety and quality standards are met.
Product Specifications
Classification Eclass 81 Classification
27371014
Classification Etim 30 Classification
EC002055
Classification Etim 40 Classification
EC002055
Classification Etim 50 Classification
EC002055
Classification Etim 60 Classification
EC002055
Classification Etim 70 Classification
EC002055

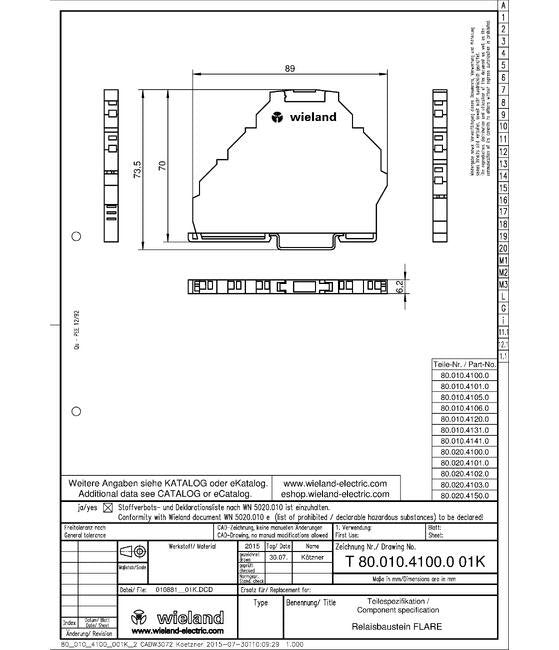

Dimensions Depth
70 mm
Dimensions Height
89 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Connection Type
Spring Clamp Connection
General Model
SOLID STATE RELAY FLARE-24VDC/48VDC-0,5A
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Maximum Connection Voltage
53 V
Technical Data Maximum Control Voltage
53 V
Technical Data Minimum Connection Voltage
4.4 V
Technical Data Minimum Control Voltage
10 V
Technical Data Modular Version
No
Technical Data Rated Operating Direct Current Dc
0.5 A
Technical Data Type Of Excitation
Direct Current (DC)
