Wieland 24VDC Coupling Relay Module
Wieland 24VDC Coupling Relay Module
SKU:COU-bc5054
High-performance Wieland 24VDC Coupling Relay Module with 2 change-over contacts, IP20 protection, and RoHS compliance
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland 24VDC Coupling Relay Module
$39.99
Quantity: 1
Claim Your Seller Account
Wieland 24VDC Coupling Relay Module
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

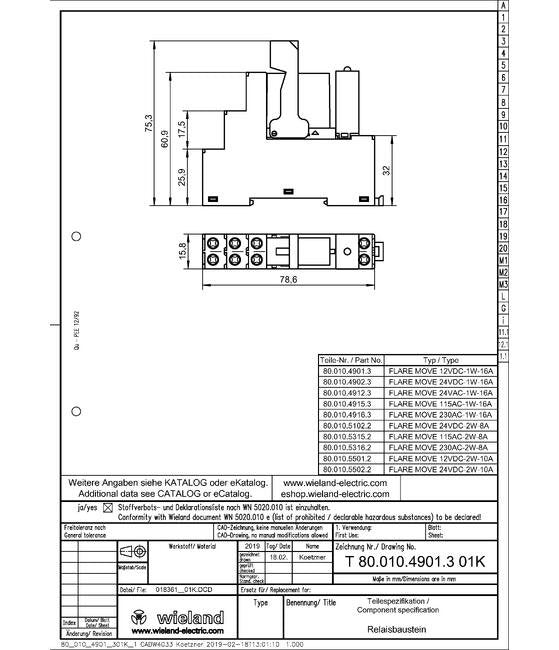

The Wieland RELAY MODULE FLARE MOVE 24VDC-2W-8A is a reliable screw connection relay module designed for 24V DC nominal operating voltage. With 2 change-over contacts, this relay module ensures seamless electrical connectivity at 250V AC / 8A. It features IP20 protection, polarization-free drive, and compact dimensions of 15.8mm width x 76mm depth x 78.6mm height. Compliant with RoHS and REACH-SVHC standards, this mono stable relay module with complete socket inclusion is ideal for various institutional and government procurement applications.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 24VDC-2W-8A
General Number Of Change Over Contacts
2
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
17.52 V
Technical Data Direct Current Dc Upper Nominal Voltage
42 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
