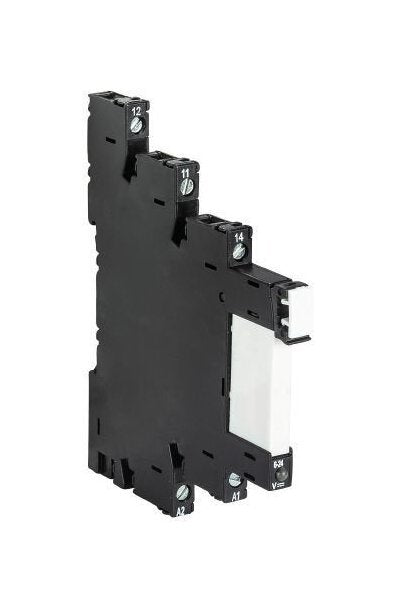

Wieland 24VDC Solid State Relay Module
Wieland 24VDC Solid State Relay Module
SKU:COU-f22e21
Reliable Wieland 24VDC Solid State Relay Module with 1 change-over contact. Compact design, RoHS & REACH-SVHC compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 24VDC Solid State Relay Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 24VDC Solid State Relay Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MOVE 24VDC-1W-AU is a reliable and efficient solid state relay module suitable for various industrial applications. With a direct current excitation and a nominal operating voltage of 24V DC, this module offers 1 change-over contact with a rating of 250V AC/6A. The screw connection type ensures secure connections, while the compact dimensions of 6.2mm width make it space-saving. This module complies with RoHS and REACH-SVHC standards, providing a safe and environmentally-friendly solution for your relay needs.
Product Specifications
Classification Eclass 81 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

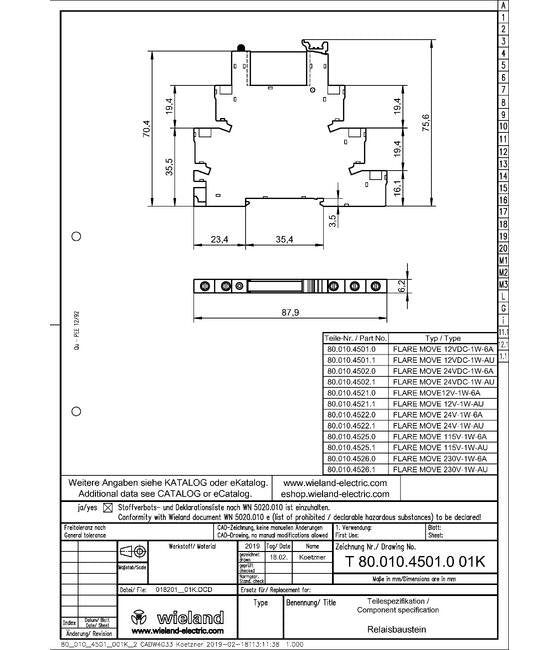

Dimensions Depth
76 mm
Dimensions Height
88 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 24VDC-1W-AU
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
18 V
Technical Data Direct Current Dc Upper Nominal Voltage
28.8 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
