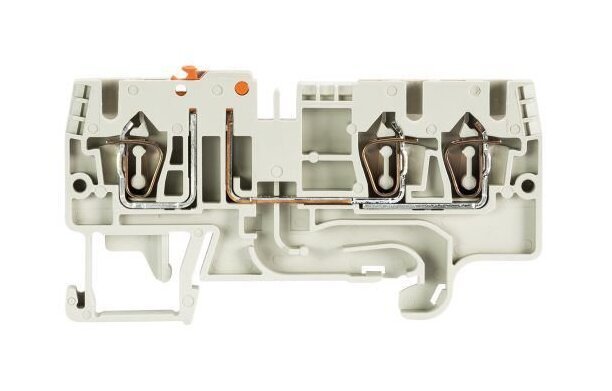

Wieland 3-Clamp Position WKFN 2 Knife Disconnect Terminal Block
Wieland 3-Clamp Position WKFN 2 Knife Disconnect Terminal Block
SKU:DIN-67a39e
Efficiently connect electrical wires with Wieland WKFN 2 Knife Disconnect Terminal Block, featuring 3 clamp positions per level, 20A rated current, and 630V maximum voltage.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3-Clamp Position WKFN 2 Knife Disconnect Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Clamp Position WKFN 2 Knife Disconnect Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKFN 2 Knife Disconnect Terminal Block offers reliable and efficient electrical connections with a 2.5 mm² nominal cross-section, 20 A rated current, and 630 V maximum rated voltage. Featuring a tension spring connection and mounting on TS 35 DIN rail, this gray terminal block is equipped with 3 clamp positions per level for secure wiring. With UL94 V0 rated insulation, this terminal block ensures high safety standards and easy installation in electrical systems.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Note Integrated Test Socket
No
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
72.4 mm
Technical Data Maximum Rated Voltage
630 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
20 A
Technical Data Ulcsa Factory Wiring Current
19 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
