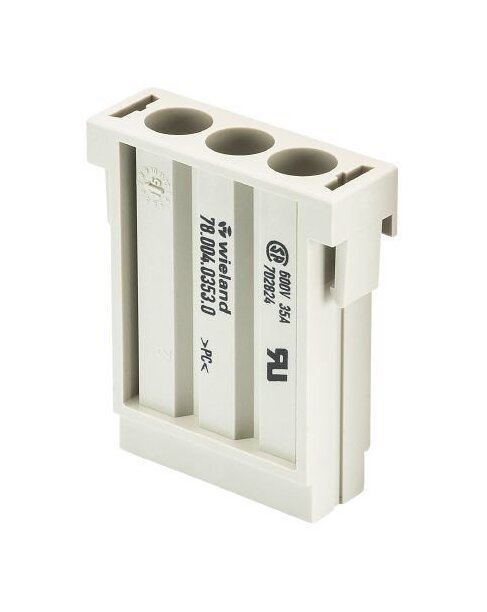

Wieland 3-Pole 630V/40A Modular Connector Female Insert
Wieland 3-Pole 630V/40A Modular Connector Female Insert
SKU:IND-1f5b09
Upgrade your connectors with Wieland's 3-Pole Female Insert for industrial applications. Rated at 630V/40A, V0 inflammability class, and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole 630V/40A Modular Connector Female Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole 630V/40A Modular Connector Female Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial multipole connectors with the Wieland 3-Pole Female Insert. Rated at 630V/40A with turned contacts and silver-plated surfaces, this modular connector boasts a V0 inflammability class and complies with RoHS and REACH-SVHC standards. With a maximum operating temperature of 120°C and a rated impulse voltage of 8 kV, this insert ensures reliable and durable performance in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
3
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
3
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠1 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
630 V
Technical Data Din En 61984 Nominal Current
40 A
Technical Data Din En 61984 Nominal Voltage
630 V
Technical Data Din En 61984 Rated Impulse Voltage
8 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
16-08 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
10 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
1.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
35 A
Technical Data Ulcsa Rated Current According Underwriters Labora
40 A
