Wieland 3-Pole Black Distribution Module
Wieland 3-Pole Black Distribution Module
SKU:CIR-9650f8
High-quality Wieland 3-Pole Black Distribution Module for secure outdoor electrical connections. RoHS & REACH-SVHC compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 3-Pole Black Distribution Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Black Distribution Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

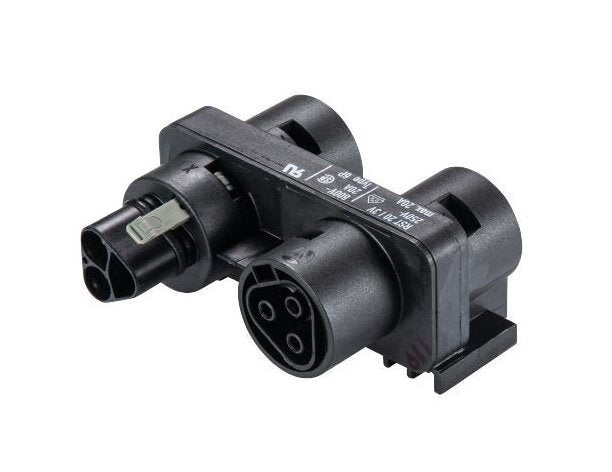

The Wieland 3-Pole Black Distribution Module offers reliable outdoor electrical connectivity with a self-locking feature for added security. With a durable polyamide housing, copper zinc contacts, and silver-plated finish, this module ensures a high degree of protection (IP66 | IP68 | IP69) against harsh environments. It complies with RoHS and REACH-SVHC standards, making it an eco-friendly and safe choice. Ideal for institutional buyers seeking quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 40 Classification
EC002567
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567

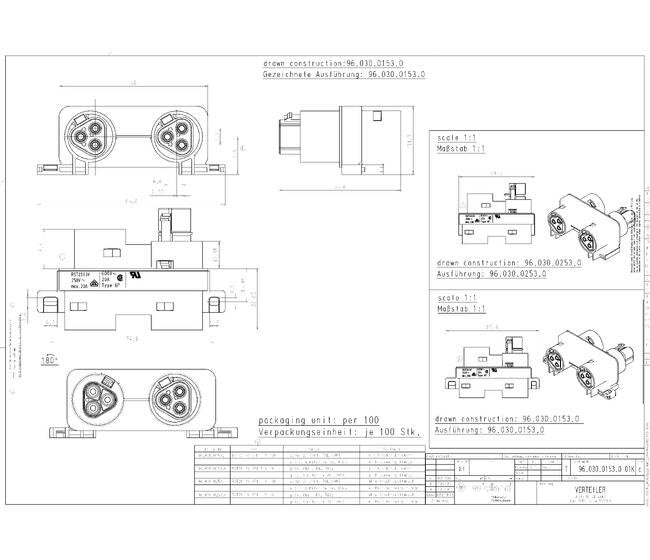

Dimensions Height
31.3 mm
Dimensions Length
55.5 mm
Dimensions Width
69.6 mm
General Brands
Wieland
General Number Of Poles
3
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.216 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Compliant with Exceptions | Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Exceptions
III-6(c)
Specifications Degree Of Protection Nema
IP66 | IP68 (3m;2h) | IP69
Specifications Note
Contact us for part numbers and additional options.
Technical Data Color Of Codingcontact Carrier
Black
Technical Data Lockable
Self-Locking (Unlocking by Tool)
Technical Data Marking Of Poles
L | N | PE
Technical Data Maximum Rated Voltage
250 V
Technical Data Number Of Inputs
1
Technical Data Number Of Outputs
3
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Type Of Distributor
Distribution Block
Technical Data Type Of Fastening
No
