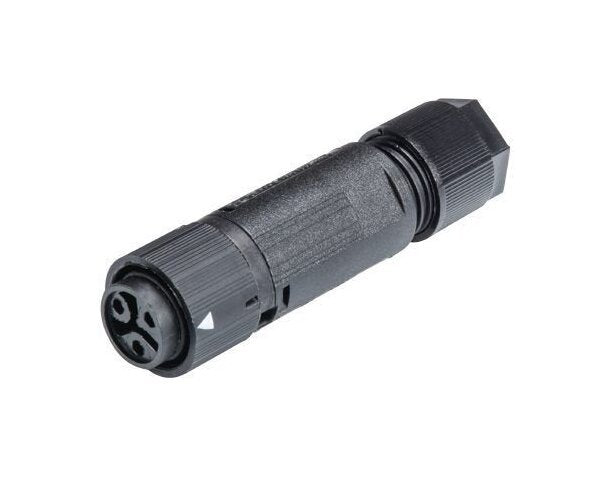

Wieland 3-Pole Black Female Pluggable Electrical Connector - 16A
Wieland 3-Pole Black Female Pluggable Electrical Connector - 16A
SKU:CIR-ca9adb
High-quality Wieland 3-Pole Black Female Pluggable Electrical Connector - 16A for reliable outdoor connections.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Wieland 3-Pole Black Female Pluggable Electrical Connector - 16A
$19.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Black Female Pluggable Electrical Connector - 16A
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Black Female Pluggable Electrical Connector is a high-quality solution for outdoor electrical connections. With a rated current of 16A and compatibility with cable diameters ranging from 5.0-9.5mm, this connector offers reliable performance. Constructed with durable polyamide housing and copper zinc contact material, it ensures long-term reliability. Featuring IP69 and Type 4X protection, it meets stringent industry standards for ingress protection. This connector is RoHS compliant with exceptions and designed for easy installation without ferrules, making it ideal for various applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
1.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
19.9 mm
Dimensions Length
71 mm
Dimensions Width
19.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Connection Type
Screw Connection
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Number Of Poles
3
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
