Wieland 3-Pole Black Male Connector - 20A
Wieland 3-Pole Black Male Connector - 20A
SKU:CIR-1d6f70

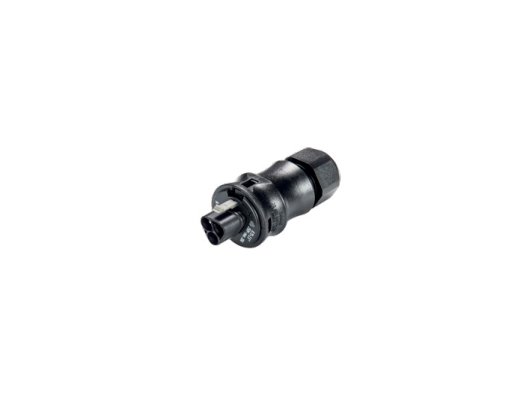

High-quality 3-pole black male connector for outdoor use. Straight angle plug, spring clamp connection. Voltage range 250V-600V, current 20A.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole Black Male Connector - 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Black Male Connector - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Black Male Connector is a high-quality pluggable electrical connector suitable for outdoor applications. With a straight angle plug and spring clamp connection, it accommodates cables ranging from 10mm to 14mm in diameter. This connector is rated for a voltage range of 250V to 600V and a current of 20A, meeting international standards for wire sizes, IP protection, and disconnect under load voltage. Trust in Wieland's reliability for secure and durable electrical connections.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
