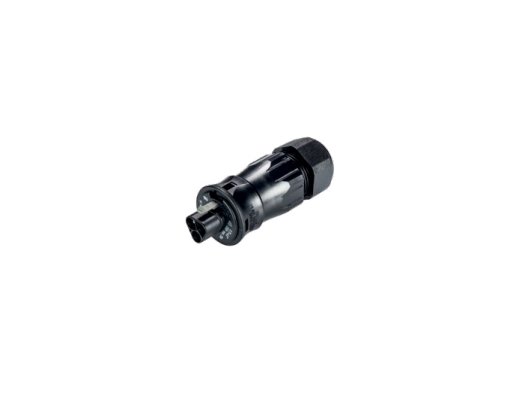

Wieland 3-Pole Black Male Electrical Connector
Wieland 3-Pole Black Male Electrical Connector
SKU:CIR-5c9c21
Premium Wieland 3-Pole Black Male Connector for reliable outdoor electrical connections. IP69 rated with 20A current capacity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole Black Male Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Black Male Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Black Male Electrical Connector is a top-tier pluggable electrical connector designed for rigorous outdoor use. Featuring a straight angle plug, screw connection, and a robust IP69 rating, this connector ensures reliable performance in varying environmental conditions. With a rated current of 20 A and compatibility with cable diameters ranging from 13mm to 18mm, it meets international standards for voltage and wire sizes, making it ideal for industrial and institutional applications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
