Wieland 3-Pole Crimp Pin Insert for Industrial Multipole Connectors
Wieland 3-Pole Crimp Pin Insert for Industrial Multipole Connectors
SKU:IND-995a3b
Enhance industrial connectivity with the Wieland 3-Pole Crimp Pin Insert. Rated 8kV, UL/CSA compliant, V0 insulation, RoHS approved.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole Crimp Pin Insert for Industrial Multipole Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Crimp Pin Insert for Industrial Multipole Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

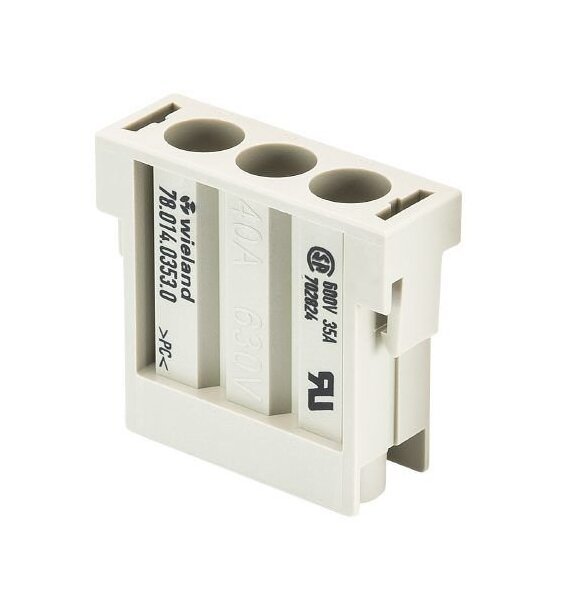

Upgrade your industrial connectivity with the Wieland 3-Pole Crimp Pin Insert. This modular connector features turned contacts, silver-plated surfaces, and a rugged construction suitable for demanding environments. With a rated impulse voltage of 8kV and compliance with UL/CSA standards, this pin insert ensures reliable performance and durability. The V0 rated insulation material and RoHS conformity add to its safety and environmental credentials.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
3
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
3
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠1 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Pin Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
630 V
Technical Data Din En 61984 Nominal Current
40 A
Technical Data Din En 61984 Nominal Voltage
630 V
Technical Data Din En 61984 Rated Impulse Voltage
8 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
16-08 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
10 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
1.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
35 A
Technical Data Ulcsa Rated Current According Underwriters Labora
40 A
