Wieland 3-Pole Electrical Splitter with 1 Input and 5 Outputs
Wieland 3-Pole Electrical Splitter with 1 Input and 5 Outputs
SKU:ELE-9ffd17
High-quality Wieland 3-pole electrical splitter with 1 input, 5 outputs, secure self-locking feature, and RoHS compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland 3-Pole Electrical Splitter with 1 Input and 5 Outputs
$39.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Electrical Splitter with 1 Input and 5 Outputs
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

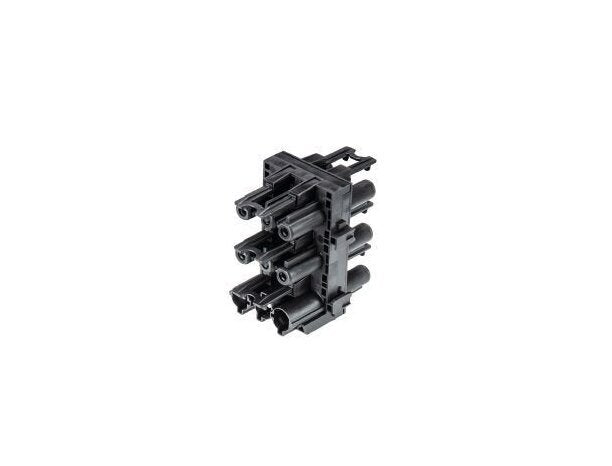

The Wieland GST18I3V 5P1 BV SW Splitter is a high-quality 3-pole electrical connector designed for indoor use. It features 1 input and 5 outputs with a mounting option on a separate plate, making installation easy and efficient. Rated for mains voltage of 250V and a current of 20A, this splitter is built to handle heavy loads. The self-locking mechanism ensures secure connections, while the black color-coding facilitates quick and accurate setup. Made from durable polyamide housing and copper zinc contacts, this splitter is also RoHS compliant and halogen-free, meeting stringent industry standards for safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 40 Classification
EC002567
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567
Dimensions Height
52.5 mm
Dimensions Length
58 mm
Dimensions Width
34.9 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L, N, PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Number Of Poles
3
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.216 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection Ip
IP20
Model Number Of Inputs
1
Model Number Of Outputs
5
Model Type Of Distributor
HH-distributor
Model Type Of Fastening
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
