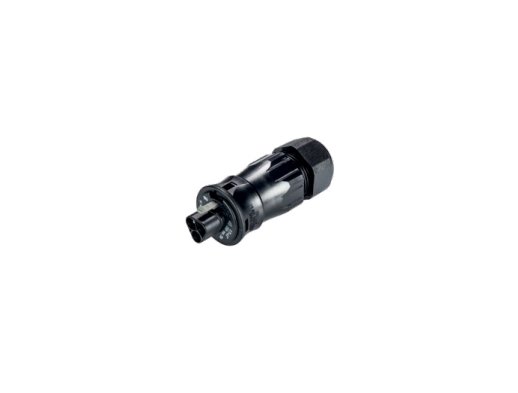

Wieland 3-Pole Leaves Green Male Connector 20A
Wieland 3-Pole Leaves Green Male Connector 20A
SKU:CIR-bb71e5
Secure outdoor electrical connections with the Wieland 3-Pole Leaves Green Male Connector. Rated 20A, 600V with spring clamp connection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole Leaves Green Male Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Leaves Green Male Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Leaves Green Male Connector is a high-performing pluggable electrical connector suitable for outdoor use. With a straight angle plug design and spring clamp connection, this connector ensures secure and reliable electrical connections. It features a rugged construction that can accommodate cable diameters ranging from 13mm to 18mm. With a rated current of 20A and voltage ratings up to 600V, this connector meets stringent international standards for quality and safety. Ideal for outdoor applications requiring durability and performance.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Leaves Green
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
