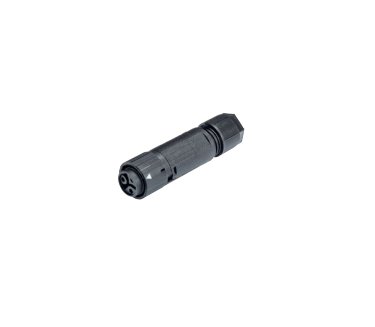

Wieland 3-Pole Light Blue Female Pluggable Electrical Connector - 16A
Wieland 3-Pole Light Blue Female Pluggable Electrical Connector - 16A
SKU:CIR-97a7bb
Reliable Wieland 3-Pole Light Blue Female Pluggable Connector - Ideal for outdoor use, IP69 and Type 4X compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland 3-Pole Light Blue Female Pluggable Electrical Connector - 16A
$14.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Light Blue Female Pluggable Electrical Connector - 16A
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Light Blue Female Pluggable Electrical Connector is a robust and reliable solution for outdoor electrical connections. With a straight angle plug and screw connection type, it ensures secure and efficient connectivity. This connector is designed to accommodate cables ranging from 5mm to 9.5mm in diameter, suitable for applications with voltages up to 600V. Compliant with IP69 and Type 4X standards, it offers high levels of protection against harsh environmental conditions, making it ideal for outdoor usage. Meeting IEC and cULus wire sizing requirements, and rated for 16A current, this connector is a dependable choice for demanding electrical installations.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Blue
General Connection Type
Screw Connection
General Number Of Poles
3
General Type
Female
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
