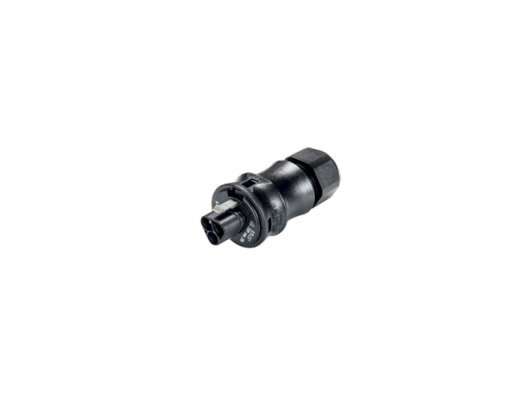

Wieland 3-Pole Light Gray Male Connector
Wieland 3-Pole Light Gray Male Connector
SKU:CIR-8bb027
High-quality Wieland 3-Pole Light Gray Male Connector for outdoor use, IP69 protection, 20A rated current
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3-Pole Light Gray Male Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Light Gray Male Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Light Gray Male Connector is a high-quality pluggable electrical connector designed for outdoor use. With a straight angle plug and secure screw connection, this connector ensures reliable performance. It features IP69 protection, suitable for varying voltages and currents, meeting international standards for safety and durability. Accommodating cable diameters from 10mm to 14mm, it supports a rated current of 20 A, making it ideal for commercial and industrial applications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Gray
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
