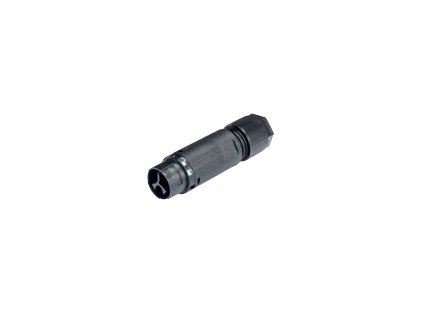

Wieland 3-Pole Male Pluggable Electrical Connector - 16 A, Leaves Green
Wieland 3-Pole Male Pluggable Electrical Connector - 16 A, Leaves Green
SKU:CIR-3cbe19
Wieland 3-Pole Male Pluggable Electrical Connector - Outdoor Rated, 16 A, Leaves Green. Reliable and durable solution for institutional projects.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3-Pole Male Pluggable Electrical Connector - 16 A, Leaves Green
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Male Pluggable Electrical Connector - 16 A, Leaves Green
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Male Pluggable Electrical Connector in Leaves Green color is a robust solution designed for outdoor use. With a rated current of 16 A and maximum voltage of 600 V, this connector offers reliability and safety. Featuring screw connection for easy installation, it meets IP69 and Type 4X protection standards, ensuring durability in harsh environments. Suitable for cables ranging from 5 mm to 9.5 mm in diameter, this connector complies with IEC and cULus wire size standards, making it ideal for institutional and government projects.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Leaves Green
General Connection Type
Screw Connection
General Number Of Poles
3
General Type
Male
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
