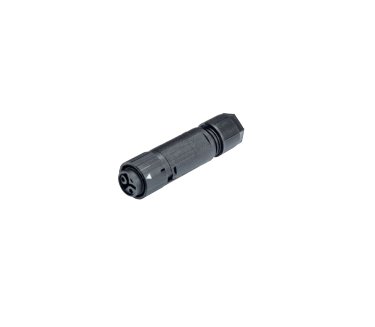

Wieland 3-Pole Signal Brown Female Pluggable Connector - 16A
Wieland 3-Pole Signal Brown Female Pluggable Connector - 16A
SKU:CIR-996566
Reliable Wieland 3-Pole Female Connector for secure electrical connections. IP69 and Type 4X protection for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3-Pole Signal Brown Female Pluggable Connector - 16A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Signal Brown Female Pluggable Connector - 16A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Signal Brown Female Pluggable Electrical Connector is designed for efficient electrical connections, featuring a straight angle plug with a robust screw connection. With a maximum rated voltage of 600V and a rated current of 16A, this connector is suitable for a variety of applications. It meets IP69 and Type 4X protection standards, ensuring durability and reliability even in outdoor environments. The connector accommodates cable sizes ranging from 5mm to 9.5mm, meeting international standards for wire sizes.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Number Of Poles
3
General Type
Female
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
