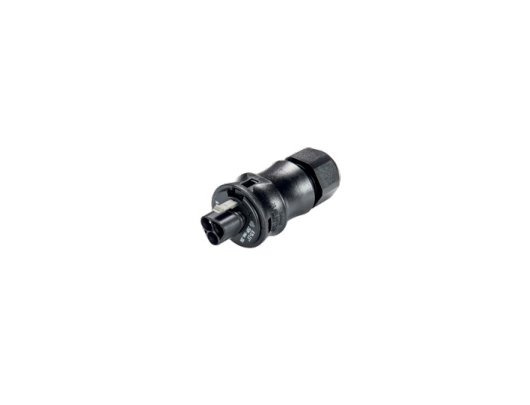

Wieland 3-Pole Signal Brown Male Connector - 20A
Wieland 3-Pole Signal Brown Male Connector - 20A
SKU:CIR-553dd5
Reliable Wieland 3-Pole Signal Brown Male Connector - 20A, IP69 Rated, Ideal for Outdoor Use
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3-Pole Signal Brown Male Connector - 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Pole Signal Brown Male Connector - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Pole Signal Brown Male Connector is a durable and reliable electrical connector suitable for outdoor use. With a straight plug angle and spring clamp connection, this connector ensures secure and efficient electrical connections. Rated for 250V to 600V and 20A current, it accommodates wire sizes from 0.75 to 6mm², meeting international standards for quality and safety. The IP69 and Type 4X/6P protection ratings make it ideal for outdoor applications that require weatherproof components.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
