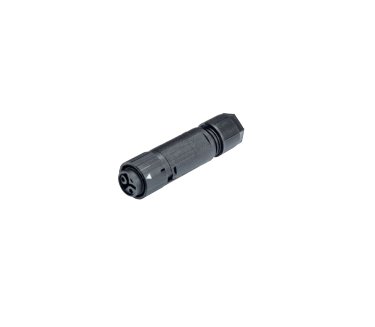

Wieland 3-Pole Turquoise Blue Female Pluggable Electrical Connector 16A

Name: Wieland 3-Pole Turquoise Blue Female Pluggable Electrical Connector 16A
Brand: Wieland Electric Inc.
SKU: CIR-247eb7
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-247eb7

Reliable Wieland 3-Pole Turquoise Blue Female Connector for 16A applications, IP69/Type 4X rated.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 3-Pole Turquoise Blue Female Pluggable Electrical Connector is designed for robust outdoor use. With a rated current of 16A and compatibility with cable diameters ranging from 5mm to 9.5mm, this connector ensures reliable power transmission. Meeting IP69 and Type 4X standards, it provides superior protection against environmental factors. Suitable for institutional and government applications requiring durability and performance.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Turquoise Blue

General Connection Type

Screw Connection

General Number Of Poles

General Type

Female

Note Note

Technical details are subject to change

Technical Data Alternating Current Ac Voltage Disconnect Under L

300 V

Technical Data Current Disconnect Under Load

16 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

9.5 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

5 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

16 A

Technical Data Wire Size According To Canadian Ul Listed United

24 to 16 AWG

Technical Data Wire Size According To International Electrotechn

0.25 to 1.5 mmÂ²

Wieland 3-Pole Turquoise Blue Female Pluggable Electrical Connector 16A
