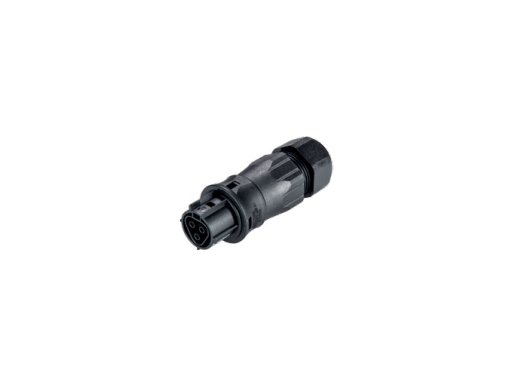

Wieland 3 Poles Black Female Circular Electrical Connector - IP69 Rated - 20A
Wieland 3 Poles Black Female Circular Electrical Connector - IP69 Rated - 20A
SKU:CIR-1cebbb
Wieland 3-Pole Black Female Connector - Outdoor Rated - IP69 - 20A, Screw Connection, Durable Design
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3 Poles Black Female Circular Electrical Connector - IP69 Rated - 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Black Female Circular Electrical Connector - IP69 Rated - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Black Female Connector is a top-of-the-line pluggable electrical connector suitable for outdoor applications. With a straight angle of plug, screw connection type, and IP69 protection rating, this connector ensures secure and reliable connections in harsh environments. It supports a minimum cable diameter of 13mm and a maximum of 18mm, along with a rated current of 20A. Compliant with international standards, this connector guarantees performance and safety.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
