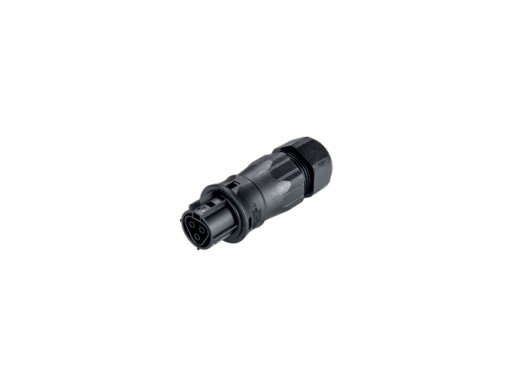

Wieland 3 Poles Black Female Connector 20A
Wieland 3 Poles Black Female Connector 20A
SKU:CIR-7bacbd
High-quality Wieland 3 Poles Black Female Connector for secure electrical connections in both indoor and outdoor applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3 Poles Black Female Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Black Female Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Black Female Connector is a high-quality pluggable electrical connector suitable for both consumer and institutional use. Featuring a straight angle of plug design with a spring clamp connection, this connector ensures secure and reliable electrical connections. With a robust construction and IP69-rated degree of protection, it provides a safe and durable solution for outdoor electrical applications. The connector supports a wide range of wire sizes and voltages, making it versatile and adaptable to various wiring scenarios. Meeting stringent industry standards, this connector is a dependable choice for all electrical connectivity needs.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
