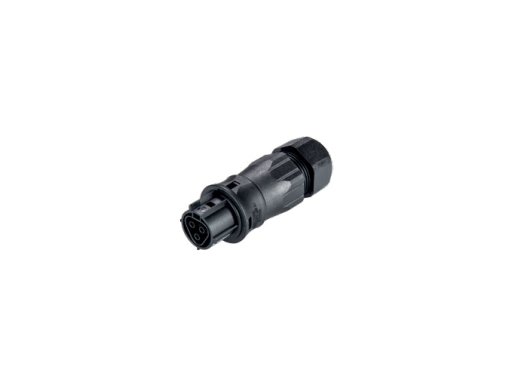

Wieland 3 Poles Leaves Green Female Connector - 20A
Wieland 3 Poles Leaves Green Female Connector - 20A
SKU:CIR-7e0e8b
Reliable Wieland 3 Poles Female Connector - 20A, Ideal for Outdoor Use
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3 Poles Leaves Green Female Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Leaves Green Female Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Leaves Green Female Connector is a high-quality pluggable electrical connector suitable for outdoor use. With a straight angle plug and screw connection type, it offers a secure and reliable connection. This connector is rated for voltages up to 600V and a current of 20A, meeting international standards for electrical safety and performance. Its IP69 protection ensures durability in harsh environments, making it ideal for both consumer and institutional applications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Leaves Green
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
