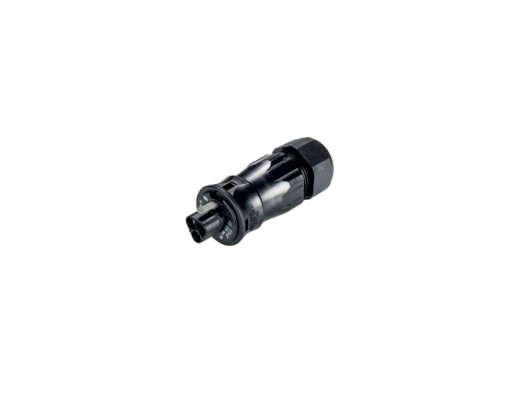

Wieland 3 Poles Leaves Green Male Connector - 20 A
Wieland 3 Poles Leaves Green Male Connector - 20 A
SKU:CIR-7a5f64
High-quality Wieland 3 Poles Leaves Green Male Connector - 20 A, ideal for outdoor projects. Straight angle plug with IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3 Poles Leaves Green Male Connector - 20 A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Leaves Green Male Connector - 20 A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Leaves Green Color Male Connector is a reliable pluggable electrical connector designed for outdoor use. With a straight angle plug, screw connection, and IP69 degree of protection, this connector supports a rated current of 20 A suitable for heavy-duty applications. It accommodates cable diameters ranging from 13mm to 18mm and meets international standards for wire sizes, making it versatile and compatible with various setups.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Leaves Green
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
