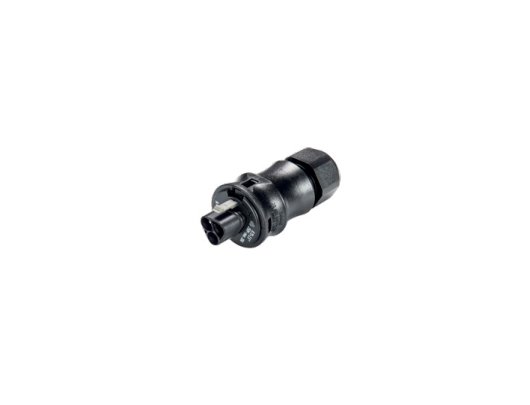

Wieland 3-Poles Leaves Green Male Connector - 20A
Wieland 3-Poles Leaves Green Male Connector - 20A
SKU:CIR-22cc3c
Weatherproof 3-Poles Leaves Green Male Connector - 20A, Durable & Secure. IP69 Rated.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3-Poles Leaves Green Male Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3-Poles Leaves Green Male Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3-Poles Leaves Green Male Connector is a durable and reliable pluggable electrical connector suitable for outdoor installations. With a straight angle of plug, spring clamp connection, and IP69 protection rating, this connector ensures secure and weatherproof connections. It supports wire sizes ranging from 0.75 to 6 mm² according to IEC standards and 16 to 10 AWG based on cULus regulations. Rated for 20A current and compatible with voltages up to 600V, this connector meets stringent industry standards for quality and performance.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Leaves Green
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
