Wieland 3 Poles Light Blue Male Connector - 20A, Outdoor Rated
Wieland 3 Poles Light Blue Male Connector - 20A, Outdoor Rated
SKU:CIR-9dfe4a
Secure outdoor electrical connections with the Wieland 3 Poles Light Blue Male Connector. Supports 20A current & IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3 Poles Light Blue Male Connector - 20A, Outdoor Rated
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Light Blue Male Connector - 20A, Outdoor Rated
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

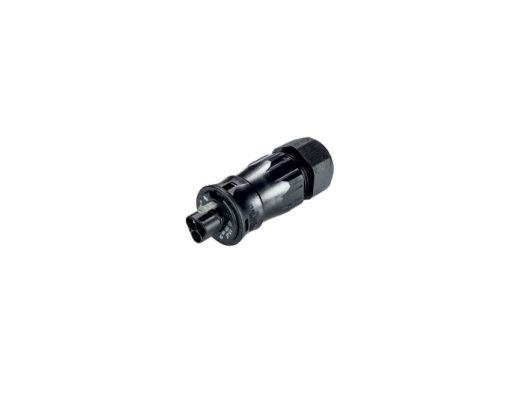

The Wieland 3 Poles Light Blue Male Connector is a durable pluggable electrical connector designed for outdoor use. With a straight plug angle and screw connection, this connector ensures secure and reliable electrical connections. It supports a rated current of 20A and is compatible with cable diameters ranging from 13mm to 18mm. Meeting IP69 and Type 4X/6P protection standards, it guarantees safety and performance in diverse environments. Compliant with IEC, cULus, and CSA wire size standards, this connector offers versatility and assurance for both consumer and institutional applications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
