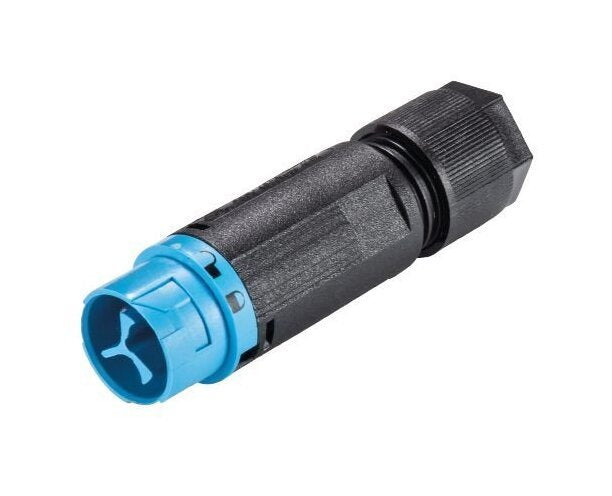

Wieland 3 Poles Light Blue Male Pluggable Electrical Connector - 16 A
Wieland 3 Poles Light Blue Male Pluggable Electrical Connector - 16 A
SKU:CIR-ab2ac4
High-quality 3-pole male pluggable connector with 16A rating, IP69 protection, and RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3 Poles Light Blue Male Pluggable Electrical Connector - 16 A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Light Blue Male Pluggable Electrical Connector - 16 A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Light Blue Male Pluggable Electrical Connector is a high-quality connector suitable for various applications. With a rated current of 16 A and a maximum cable diameter of 9.5mm, this connector offers reliable performance. It features IP66 | IP68 | IP69 protection, self-locking mechanism, and a color-coded design for easy identification. Made of durable materials like polyamide and copper zinc, it ensures longevity and efficient conductivity. This connector complies with RoHS standards and is suitable for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
1.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
19.9 mm
Dimensions Length
64 mm
Dimensions Width
19.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Blue
General Color Of Housing Inclusive Strain Relief
Black
General Connection Type
Screw Connection
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2
General Number Of Poles
3
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
