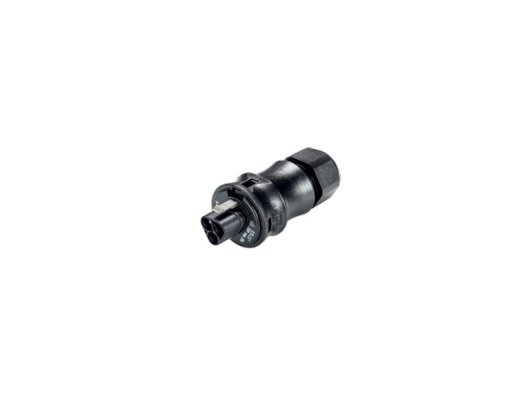

Wieland 3 Poles Signal Brown Male Connector - 20A
Wieland 3 Poles Signal Brown Male Connector - 20A
SKU:CIR-16e64f
High-quality Wieland 3-pole male connector for outdoor use, rated at 20A and 600V. IP69 and Type 4X/6P protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 3 Poles Signal Brown Male Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Signal Brown Male Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Signal Brown Male Connector is a high-quality pluggable electrical connector designed for outdoor use. It features a straight angle plug with a spring clamp connection, suitable for cables ranging from 10mm to 14mm in diameter. With a rated current of 20A and maximum voltage of 600V, this connector meets stringent international standards like IEC and CSA, ensuring reliable performance in various applications. It also boasts IP69 and Type 4X/6P protection levels for durability in challenging environments.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
