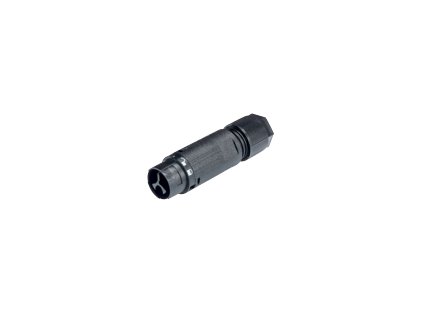

Wieland 3 Poles Signal Brown Male Electrical Connector - 16 A
Wieland 3 Poles Signal Brown Male Electrical Connector - 16 A
SKU:CIR-bea42c
Secure outdoor connections with Wieland 3 Poles Signal Brown Male Electrical Connector - 16 A. IP69 protection for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 3 Poles Signal Brown Male Electrical Connector - 16 A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 3 Poles Signal Brown Male Electrical Connector - 16 A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 3 Poles Signal Brown Male Pluggable Electrical Connector - 16 A is a reliable and durable solution for outdoor applications. With a straight angle plug and IP69 protection rating, it ensures secure connections in challenging environments. This connector supports a rated current of 16 A and is compliant with international standards for voltage and cable sizes, making it ideal for both consumer and institutional use.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Number Of Poles
3
General Type
Male
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
