Wieland 35mm Feed-Through Terminal Block
Wieland 35mm Feed-Through Terminal Block
SKU:DIN-a3da31
Reliable 35mm Feed-Through Terminal Block with 800V max voltage, 124A current, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 35mm Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 35mm Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

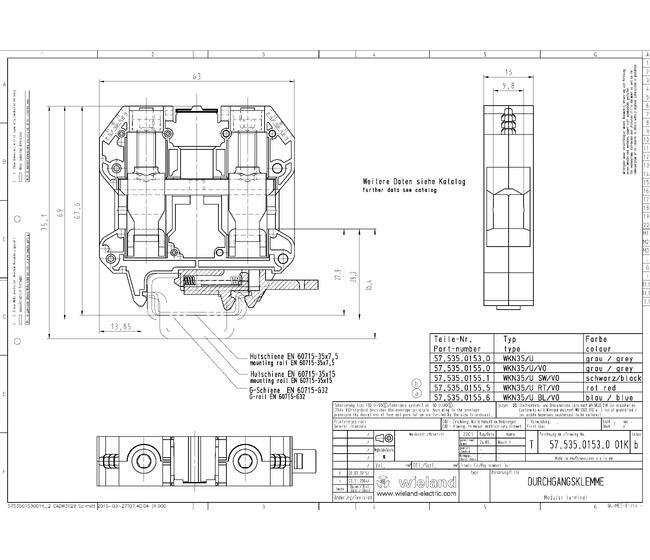

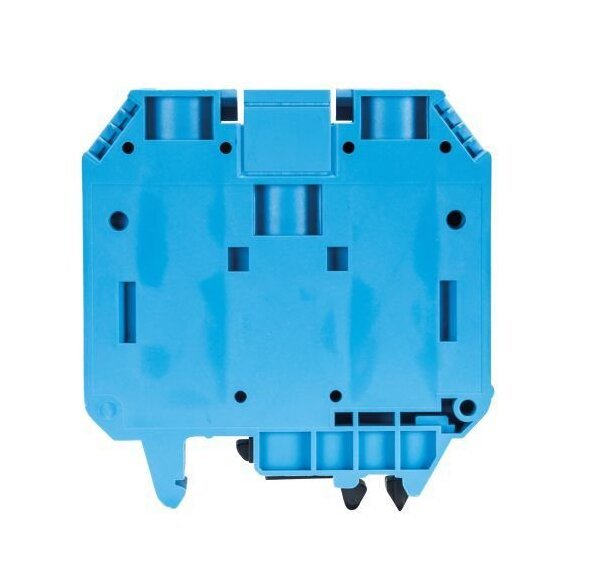

The Wieland WKN35/U BL/V0 Feed-Through Terminal Block is a reliable solution for electrical connections, featuring a 35 mm² nominal cross-section and a blue insulating housing. With a maximum rated voltage of 800V and a rated current of 124A, this terminal block ensures secure connections. It complies with RoHS and REACH-SVHC standards, making it environmentally friendly. Ideal for DIN rail installations, it offers 2 clamp positions per level and explosion-tested construction for added safety.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
35 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
50 mm²
Connection Data Minimum Fine Stranded Cross Section
10 mm²
Connection Data Minimum Solid Cross Section
10 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
18 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN35/U BL/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
35 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Width Grid Dimension
16 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
70.6 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
124 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
10-1/0 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
10 - 1/0 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
150 A
Technical Data Ulcsa Factory Wiring Current
150 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
