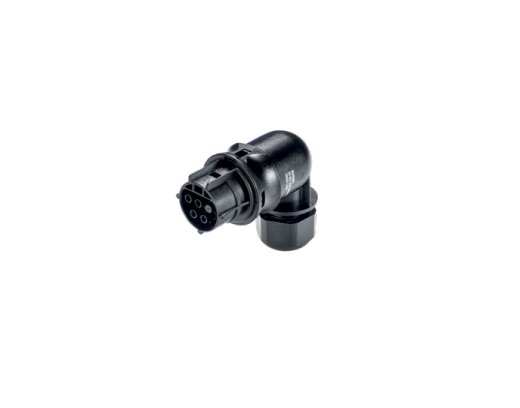

Wieland 4/5 Pole Black Female Connector 20A
Wieland 4/5 Pole Black Female Connector 20A
SKU:CIR-5ec9c4
High-quality Wieland 4/5 Pole Black Female Connector for outdoor use, 20A rated current, IP69 & Type 4X/6P protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 4/5 Pole Black Female Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 4/5 Pole Black Female Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 4/5 Pole Black Female Connector is a high-quality pluggable electrical connector designed for outdoor use. Featuring a 90-degree angled plug for convenient installation, this connector is suitable for cables with a diameter ranging from 6mm to 10mm. With a rated current of 20A and compatibility with wire sizes from 0.75 to 4mm², this connector meets IP69 and Type 4X/6P protection standards. It is ideal for applications requiring a reliable and secure electrical connection in harsh outdoor environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
