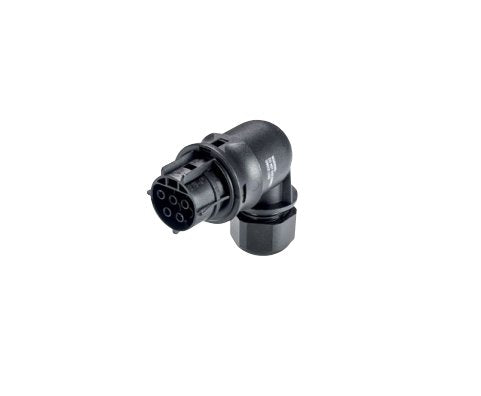

Wieland 4-Pole Black Female Electrical Connector
Wieland 4-Pole Black Female Electrical Connector
SKU:CIR-05f973
Reliable outdoor 4-pole female connector with 20A current rating and IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 4-Pole Black Female Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 4-Pole Black Female Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 4-Pole Black Female Electrical Connector is designed for reliable outdoor electrical connections. With a 20A current rating, screw connection type, and IP69 protection, it ensures secure and durable performance. This connector supports cables ranging from 10mm to 14mm in diameter and meets international standards for voltage and wire sizes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
