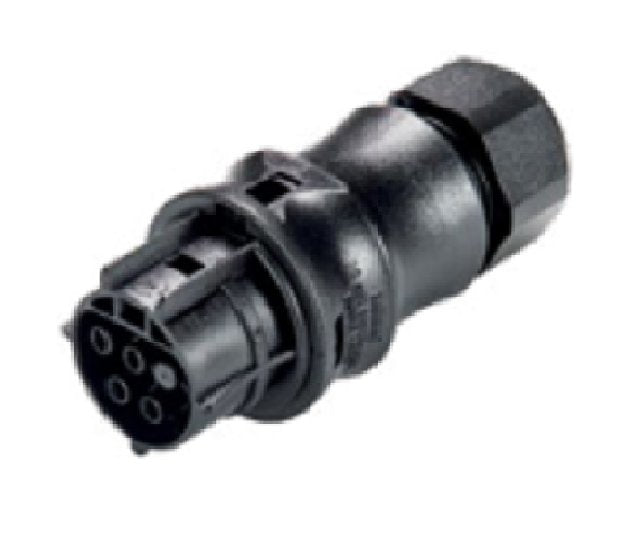

Wieland 4-Pole Light Gray Female Connector

Name: Wieland 4-Pole Light Gray Female Connector
Brand: Wieland Electric Inc.
SKU: CIR-40c3e8
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-40c3e8

High-quality Wieland 4-Pole Light Gray Female Connector for secure outdoor electrical connections. IP69 rated with 20A current.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 4-Pole Light Gray Female Connector is a high-quality, pluggable electrical connector designed for outdoor applications. With a straight angle of plug and screw connection type, it ensures secure and reliable connections. This connector is IP69 rated for protection against dust and water, making it ideal for outdoor use. It supports a rated current of 20 A and can accommodate cable diameters ranging from 10mm to 14mm, meeting international standards for voltage and wire sizes.

Product Specifications

Note Note

Technical details are subject to change

Specifications Angle Of Plug

Straight

Specifications Color Of Codingcontact Carrier

Light Gray

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Alternating Current Ac Voltage Disconnect Under L

350 V

Technical Data Current Disconnect Under Load Usa And Canada

20 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

20 A

Technical Data Wire Size According To Canadian Ul Listed United

18 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.75 to 4 mmÂ²
