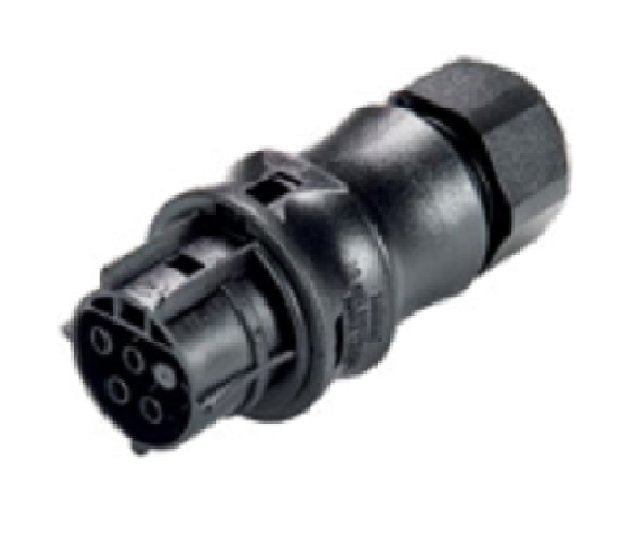

Wieland 4-Pole Light Gray Female Connector - 20A
Wieland 4-Pole Light Gray Female Connector - 20A
SKU:CIR-8814ae
Wieland 4-Pole Light Gray Female Connector - Reliable, weatherproof, and compliant connector for industrial use.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland 4-Pole Light Gray Female Connector - 20A
$25.99
Quantity: 1
Claim Your Seller Account
Wieland 4-Pole Light Gray Female Connector - 20A
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 4-Pole Light Gray Female Connector is a high-quality pluggable electrical connector suitable for outdoor applications. With a straight angle plug and screw connection, this connector ensures secure and reliable connections. It features a minimum cable diameter of 6mm and a maximum rated voltage of 600V, meeting the standards for industrial and institutional use. The IP69 and Type 4X/6P protection ratings make it ideal for harsh environments, while its compatibility with wire sizes ranging from 0.75 to 4mm² ensures versatility. Trust Wieland for durable and compliant electrical connectors.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Gray
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
