Wieland 4-Pole Signal Brown Female Connector - 20A
Wieland 4-Pole Signal Brown Female Connector - 20A
SKU:CIR-d25ab7
High-quality Wieland 4-Pole Signal Brown Female Connector for secure outdoor electrical connections. IP69 & 20A rated.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 4-Pole Signal Brown Female Connector - 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 4-Pole Signal Brown Female Connector - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

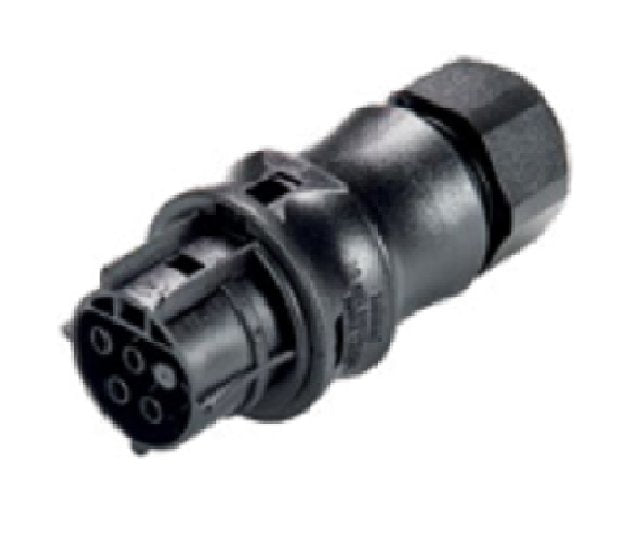

The Wieland 4-Pole Signal Brown Female Connector is a reliable solution for high-voltage electrical connections. Featuring a screw connection for secure installations, this connector is designed for outdoor use with a robust IP69 and Type 4X/6P protection rating. With a rated current of 20A and compatibility with cable diameters ranging from 10mm to 14mm, this connector meets international standards for durability and performance. Suitable for various applications, this connector ensures a safe and efficient electrical connection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
