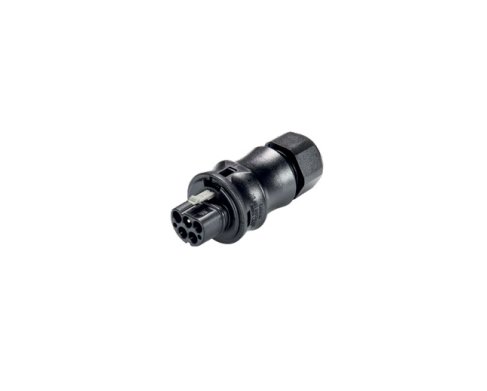

Wieland 4-Pole Signal Brown Male Connector
Wieland 4-Pole Signal Brown Male Connector
SKU:CIR-0f6184
Reliable Wieland 4-Pole Signal Brown Male Connector for outdoor electrical applications. Straight plug angle, 20A current, IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 4-Pole Signal Brown Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 4-Pole Signal Brown Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable outdoor electrical connectivity with the Wieland 4-Pole Signal Brown Male Connector. This pluggable connector features a straight plug angle, screw connection, and IP69 protection, making it ideal for outdoor use. With a rated current of 20A and compatibility with cable diameters ranging from 6mm to 10mm, this connector ensures secure and efficient power transmission. Compliant with IEC standards for voltage ratings up to 600V and wire sizes of 0.75 to 4mm², the Wieland connector is a durable and high-performance solution for your electrical connection needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
