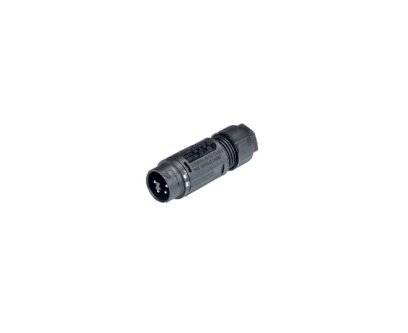

Wieland 4-Pole Signal Brown Male Pluggable Connector - 16A

Name: Wieland 4-Pole Signal Brown Male Pluggable Connector - 16A
Brand: Wieland Electric Inc.
SKU: CIR-1d2d9c
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-1d2d9c

Reliable Wieland 4-Pole Male Connector - IP69 & 16A Rated

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 4-Pole Signal Brown Male Pluggable Electrical Connector is an essential component for outdoor electrical connections, featuring a robust design suitable for industrial settings. With a straight-angle plug and screw connection type, this connector offers a secure and reliable electrical interface. It complies with IP69 and Type 4X/6P standards, ensuring high protection against water and dust ingress. Rated for 16A current and compatible with cable diameters ranging from 7.1mm to 13mm, this connector is designed for durability and efficiency.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Signal Brown

General Connection Type

Screw Connection

General Number Of Poles

General Type

Male

Note Note

Technical details are subject to change

Technical Data Alternating Current Ac Voltage Disconnect Under L

350 V

Technical Data Current Disconnect Under Load

16 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

13 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

7.1 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

16 A

Technical Data Wire Size According To Canadian Ul Listed United

22 to 16 AWG

Technical Data Wire Size According To International Electrotechn

0.25 to 2.5 mmÂ²
