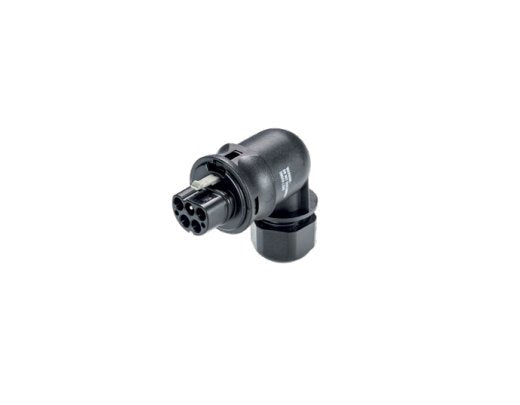

Wieland 5-Pole Black Male Connector 20A
Wieland 5-Pole Black Male Connector 20A
SKU:CIR-9c9753
Reliable Wieland 5-Pole Black Male Connector for outdoor use, rated 20A with IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 5-Pole Black Male Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Black Male Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Black Male Connector is a high-quality pluggable electrical connector designed for outdoor use. With an angled 90-degree plug, screw connection, and IP69 protection rating, this connector ensures reliable performance in various environments. It supports cables ranging from 10mm to 14mm in diameter, rated for 250V to 600V, and a current of 20A. Compliant with IEC and cULus standards, this connector is a dependable choice for demanding electrical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
