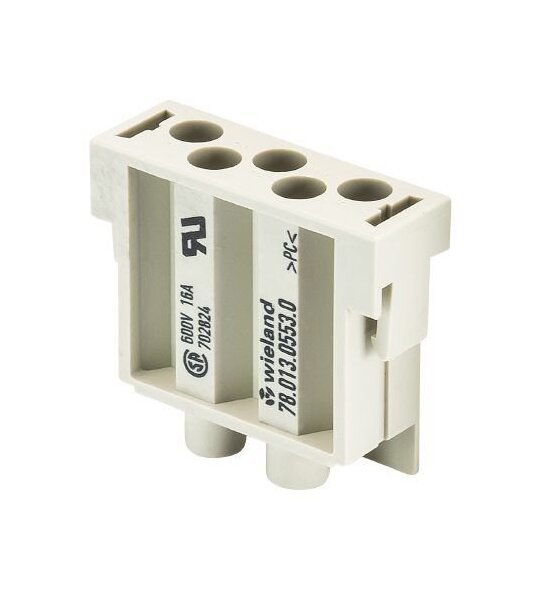

The Wieland 5-Pole Crimp Pin Insert is a versatile modular connector designed for industrial multipole connectors. With a 6kV rated impulse voltage, this gray insert offers reliable performance in a wide temperature range from -40°C to 120°C. Featuring silver-plated turned contacts, it ensures a low contact resistance of ≤ 2 mΩ for secure electrical connections. This product complies with UL94 V0 inflammability standards and RoHS/REACH-SVHC regulations, making it a safe and environmentally friendly choice for various applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
5
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
5
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠2 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Pin Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
20 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
400 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
Technical Data Ulcsa Rated Current According Underwriters Labora
20 A
