Wieland 5-Pole Distributor Block - Turquoise Blue Color Coding
Wieland 5-Pole Distributor Block - Turquoise Blue Color Coding
SKU:CIR-14f4f7
Explore the Wieland 5-Pole Distributor Block - Turquoise Blue for reliable outdoor electrical connections. IP69 & Type 4X/6P rated.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland 5-Pole Distributor Block - Turquoise Blue Color Coding
$39.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Distributor Block - Turquoise Blue Color Coding
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Distributor Block in Turquoise Blue is a high-quality outdoor-rated circular electrical connector designed for institutional and consumer applications. With a self-locking mechanism and exceptional protection against environmental factors (IP69, Type 4X/6P), this distribution block ensures secure electrical connections in demanding settings. Featuring a copper zinc contact material, polyamide housing, and compliance with RoHS and REACH standards, this product guarantees durability, safety, and environmental responsibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567

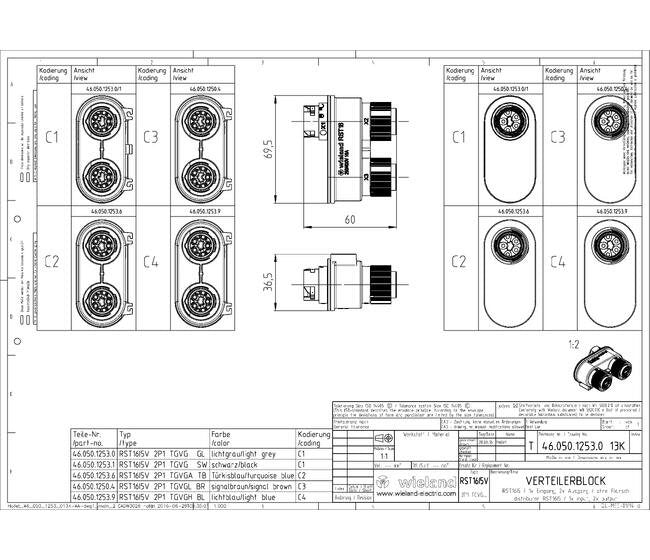

Dimensions Height
60 mm
Dimensions Length
69.5 mm
Dimensions Width
36.5 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Turquoise Blue
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | L | N | PE
General Pollution Degree
3
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.266 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Number Of Inputs
1
Model Number Of Outputs
2
Model Type Of Distributor
Distribution Block
Model Type Of Fastening
Yes
Note Note
Technical details are subject to change
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Cable Diameter
7.1 to 13 mm
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Number Of Poles
5
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
