Wieland 5-Pole Light Blue Distributor Block
Wieland 5-Pole Light Blue Distributor Block
SKU:CIR-1a1f20
Upgrade with Wieland's 5-Pole Distributor Block for secure and efficient electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 5-Pole Light Blue Distributor Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Light Blue Distributor Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

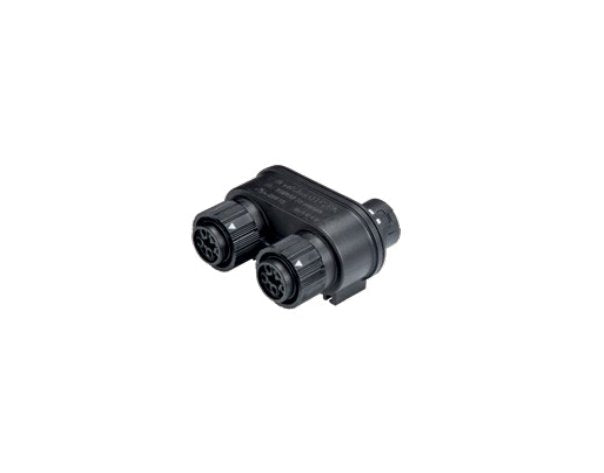

Enhance your electrical connections with the Wieland 5-Pole Light Blue Distributor Block. This distribution block allows for a parallel connection with 1 input and 2 outputs, featuring a fastening option to a mounting plate for secure installations. With a color of coding in light blue, it supports cable diameters from 7.1 to 13mm and is rated for voltages up to 600V. This block is designed for reliability and ease of use, meeting IP69 and Type 4X / 6P protection standards for outdoor applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Blue
Model Number Of Inputs
1
Model Number Of Outputs
2
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
7.1 to 13 mm
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Number Of Poles
5
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
