Wieland 5-Pole Light Blue Male Connector
Wieland 5-Pole Light Blue Male Connector
SKU:CIR-4e8aad
High-quality Wieland 5-Pole Light Blue Male Connector with IP69 protection for secure outdoor electrical connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 5-Pole Light Blue Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Light Blue Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

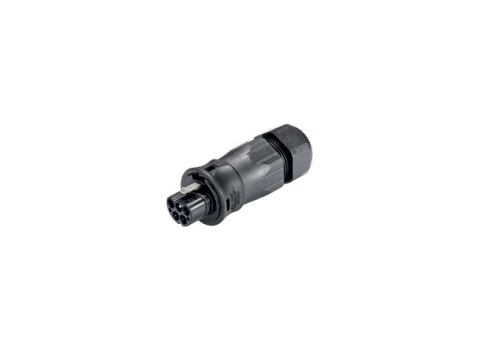

The Wieland 5-Pole Light Blue Male Connector is a high-quality pluggable electrical connector designed for outdoor use. With a straight angle plug and screw connection, this connector ensures a secure and reliable electrical connection. It features a IP69 and Type 4X/6P protection rating, making it ideal for outdoor applications. Rated for 20A and compatible with cable diameters ranging from 10mm to 14mm, this connector meets stringent international and North American wiring standards, including IEC and cULus requirements. Trust Wieland for top-notch quality and performance in electrical connectors.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
