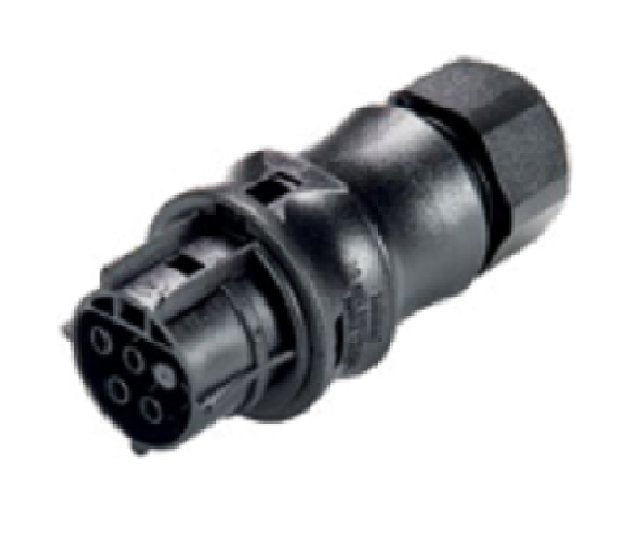

Wieland 5-Pole Light Gray Female Connector
Wieland 5-Pole Light Gray Female Connector
SKU:CIR-8a8d5a
Get reliable outdoor connectivity with the Wieland 5-Pole Light Gray Female Connector, capable of handling 20A current and offering IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 5-Pole Light Gray Female Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Light Gray Female Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Light Gray Female Connector is a high-quality pluggable electrical connector suitable for outdoor use. With a straight angle of plug and color-coded contact carrier in light gray, this connector offers a secure screw connection for 20A of current. It has a durable construction with IP69 and Type 4X / 6P protection, meeting stringent industry standards for voltage, current, and wire size. Designed with a cable diameter range of 10mm to 14mm, this connector assures reliable performance in demanding environments, making it ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Gray
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
