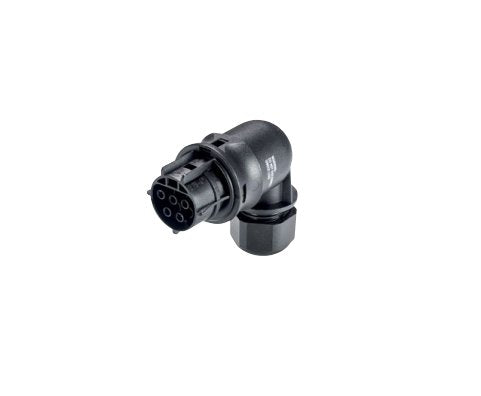

Wieland 5 Pole Signal Brown Female Connector
Wieland 5 Pole Signal Brown Female Connector
SKU:CIR-30f066
Reliable Wieland 5 Pole Signal Brown Female Connector for outdoor use. Rated current: 20A. Maximum voltage: 600V. Easy to install with versatile compatibility.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 5 Pole Signal Brown Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 5 Pole Signal Brown Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5 Pole Signal Brown Female Connector is a top-of-the-line pluggable electrical connector designed for outdoor use. With a rated current of 20 A and a maximum rated voltage of 600 V, this connector ensures reliable and secure electrical connections. Featuring an angled 90° plug and IP69 protection, it offers robust performance in demanding outdoor environments. Its screw connection type and compatibility with cable diameters ranging from 6 mm to 10 mm make it versatile and easy to install. This connector meets IEC and cULus standards for wire sizes, providing peace of mind for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
