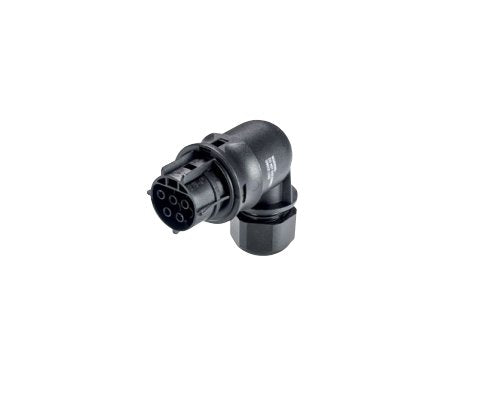

Wieland 5-Pole Signal Brown Female Connector

Name: Wieland 5-Pole Signal Brown Female Connector
Brand: Wieland Electric Inc.
SKU: CIR-8cdc93
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-8cdc93

Dependable 5-Pole Signal Brown Female Connector for outdoor use, 20A, IP69 protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 5-Pole Signal Brown Female Connector is a reliable pluggable electrical connector suitable for outdoor applications. With a 20A rated current and IP69 protection, it ensures secure screw connections for cables ranging from 10mm to 14mm in diameter. Compliant with IEC and cULus wire size standards, it offers a voltage range of 250V to 600V, making it ideal for both consumer and institutional needs. This connector, with a 90º angled plug design, guarantees dependable performance even in demanding environments.

Product Specifications

Note Note

Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Signal Brown

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Alternating Current Ac Voltage Disconnect Under L

350 V

Technical Data Current Disconnect Under Load Usa And Canada

20 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

20 A

Technical Data Wire Size According To Canadian Ul Listed United

18 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.75 to 4 mmÂ²
