Wieland 5-Pole Signal Brown Female Electrical Connector
Wieland 5-Pole Signal Brown Female Electrical Connector
SKU:CIR-406fe1
High-quality 5-Pole Signal Brown Female Electrical Connector for secure outdoor connections. Rated at 20A, 600V with IP69 protection.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland 5-Pole Signal Brown Female Electrical Connector
$15.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Signal Brown Female Electrical Connector
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

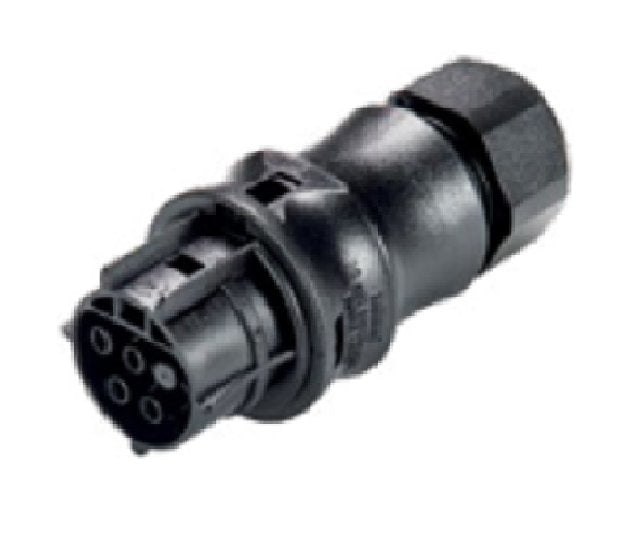

The Wieland 5-Pole Signal Brown Female Electrical Connector is a high-quality pluggable electrical connector suitable for outdoor use. With a straight angle of plug and screw connection type, it ensures secure and reliable connections. This connector has a rated current of 20 A, a maximum rated voltage of 600 V, and meets IP69 and Type 4X / 6P protection standards, making it ideal for demanding environments. Suitable for cable diameters ranging from 6mm to 10mm, this connector is versatile and durable, meeting international and UL standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
