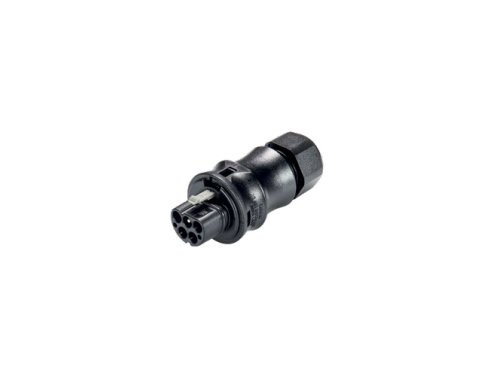

Wieland 5-Pole Signal Brown Male Connector
Wieland 5-Pole Signal Brown Male Connector
SKU:CIR-159264
High-quality Wieland 5-Pole Signal Brown Male Connector for outdoor use, rated at 20A, 600V. IP69 protection, straight angle plug.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland 5-Pole Signal Brown Male Connector
$39.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Signal Brown Male Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Signal Brown Male Connector is a high-quality pluggable electrical connector designed for outdoor use. With a rated current of 20 A and a maximum voltage of 600 V, this connector ensures reliable and secure connections. It features a straight angle plug, screw connection, and IP69 protection rating, making it ideal for outdoor applications where durability and performance are essential. The connector is compatible with cables ranging from 6mm to 10mm in diameter, meeting international standards for wire size and voltage requirements.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
