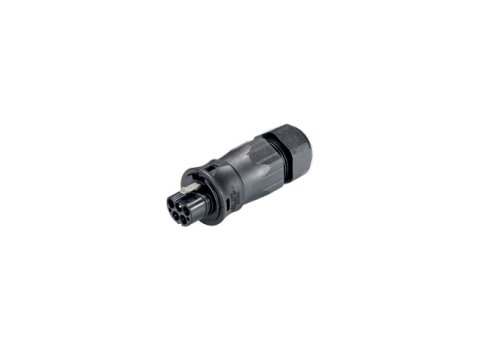

Wieland 5-Pole Signal Brown Male Connector
Wieland 5-Pole Signal Brown Male Connector
SKU:CIR-c1eea7
Secure, outdoor-rated 5-Pole Male Connector for reliable electrical connections in demanding environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 5-Pole Signal Brown Male Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Signal Brown Male Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Signal Brown Male Connector is a reliable and durable pluggable electrical connector designed for outdoor use. With a straight plug angle and screw connection, this connector ensures secure and stable connections. It features 5 poles, a 20A rated current, and offers a wide voltage range from 250V to 600V, making it suitable for various electrical applications. Compliant with IP69 and Type 4X/6P standards, this connector provides protection against dust, water ingress, and harsh environmental conditions, ideal for both consumer and institutional buyers.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
